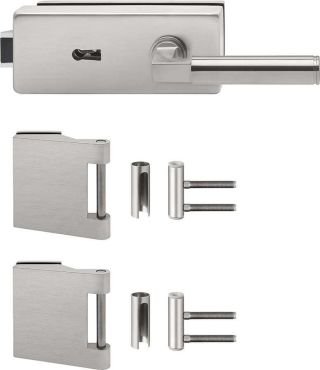

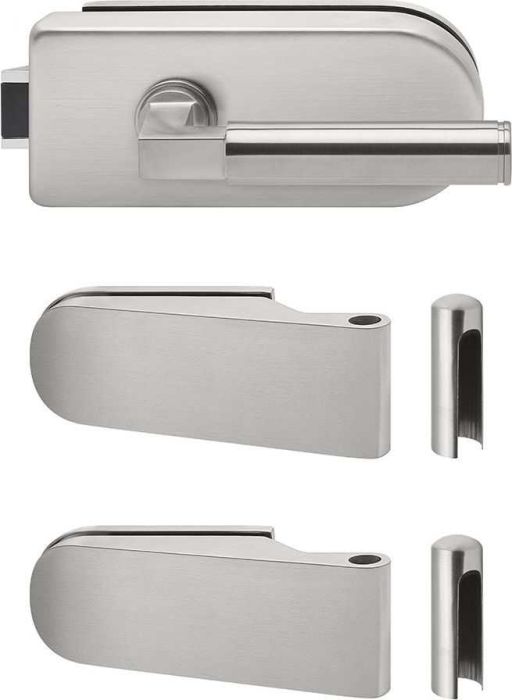

Set for Installing Interior Glass Doors
Set for Installing Interior Glass Doors
The heavy-duty glass door lock case is constructed from finely ground stainless steel and features a whisper latch for greatly reduced closing noise. The double clamping follower securely fixes the square pin of the door handle pair with tight springs, ensuring a firm connection between the lock follower and square. This design minimizes the wobbling of the handle pair.
Thanks to the included handle pair adapters (16/18 mm), you can combine all stainless steel handle pairs with this glass door lock.
- Glass door hinge set made of solid block aluminium in stainless steel finish fine grinded.
- Frame parts (also called hinge middle parts) for wooden frames
- Pair of door handles according to product description / product illustration
The glass door fitting set fits every standard glass door with Variant perforation, i.e. for the lock case 2 glass perforations horizontally next to each other and for the glass door hinges 2 glass perforations vertically below each other. Best workmanship and long durability guarantee you a long time pleasure with this product.
Included:
1 handle set 2 door hinges depending on selection (see above)
2 hinge model Features high-quality materials
No aluminium sheet metal, no anodized surfaces that pick up
Nickel-plated closing wedge High-quality lock mechanism
Position springs for exact and backlash-free grip position
Exact and inconspicuous welding seams
Housing and handle are made of solid stainless steel Modern designs
Surface / Color: Stainless Steel Look
Surface / Color (according to manufacturer): Stainless steel look
Fitting type: Complete set for glass doors
DIN direction: can be used on both sides
Handle mounting: 16 mm and 18 mm
Handle bearing: loose bearing
Latch (material): Whisper latch (Kst coating for quiet closing) for door thickness: 8 mm (5/16) - 10 mm (3/8″)
Frame type: Wooden frames
For frame / frame part height: 48,5 mm
Glass door hinge perforation: Office (2 perforations underneath each other)
Glass door Lock case perforation: Studio (2 perforations next to each other)
Glass door width (max): (38" Inches)
Glass door weight (max): 55 kg (121 Pounds)
Fixation on square pin: grub screw
Square pin (size): 8 mm
Screw connection (visibility): concealed
Screw connection (technical): continuous
Write Your Own Review
| Model: | 0029 |
| Type: | Studio (2-piece tapes) Studio |
| Accessory Color | Stainless Steel |
| Locks: | Pivot & Swing Glass Doors |
| Types Of Hinges: | Matt Stainless Steel |
