Interior Door Glass Assembly Package

$229.00
In stock
SKU
GI10028

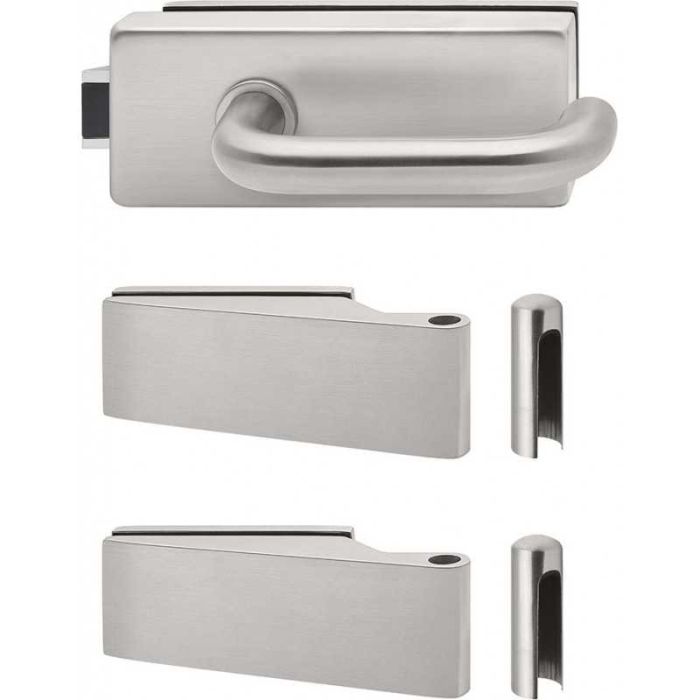

Interior Door Glass Assembly Package

Heavy glass door lock case made of stainless steel in a finely ground surface with whisper latch for significantly reduced closing noise. The double clamping follower permanently fixes the square pin of the door handle pair by means of tight springs, thus creating a non-positive connection between lock follower and square. Wobbling of the pair of handles is minimized. Due to the enclosed handle pair adapters 16/18 mm you can combine all stainless steel handle pairs with this glass door lock:

- Glass door hinge set made of solid block aluminium in stainless steel finish fine grinded.
- Frame parts (also called hinge middle parts) for wooden frames
- Pair of door handles according to product description / product illustration

The glass door fitting set fits every standard glass door with Variant perforation, i.e. for the lock case 2 glass perforations horizontally next to each other and for the glass door hinges 2 glass perforations vertically below each other. Best workmanship and long durability guarantee you a long time pleasure with this product.

Included:
1 handle set

2 door hinges depending on selection (see above)

2 hinge model


Features
High-quality materials

No aluminium sheet metal, no anodized surfaces that pick up

Nickel-plated closing wedge

High-quality lock mechanism

Position springs for exact and backlash-free grip position

Exact and inconspicuous welding seams

Housing and handle are made of solid stainless steel

Modern designs

Surface / Color: Stainless Steel Look

Surface / Color (according to manufacturer): Stainless steel look

Fitting type: Complete set for glass doors

DIN direction: can be used on both sides

Handle mounting: 16 mm and 18 mm

Handle bearing: loose bearing

Latch (material): Whisper latch (Kst coating for quiet closing) for door thickness: 8 mm (5/16) - 10 mm (3/8″)

Frame type: Wooden frames

For frame / frame part height: 48,5 mm

Glass door hinge perforation: Office (2 perforations underneath each other)

Glass door Lock case perforation: Studio (2 perforations next to each other)

Glass door width (max): (38" Inches)

Glass door weight (max): 55 kg (121 Pounds)

Fixation on square pin: grub screw

Square pin (size): 8 mm

Screw connection (visibility): concealed

Screw connection (technical): continuous

Write Your Own Review
You're reviewing:Interior Door Glass Assembly Package
Model:0028
Type: Studio (2-piece tapes)
Accessory Color:Stainless Steel
Locks:Pivot & Swing Glass Doors
Types Of Hinges:Matt Stainless Steel
