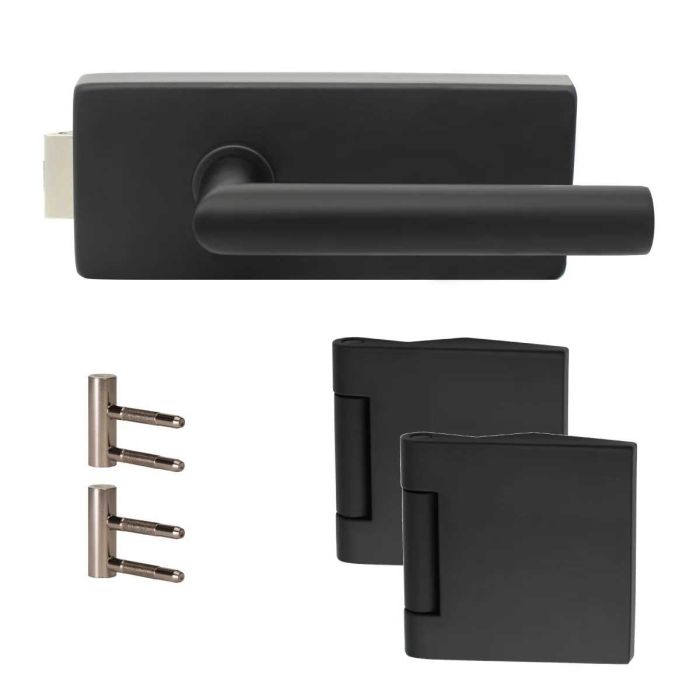

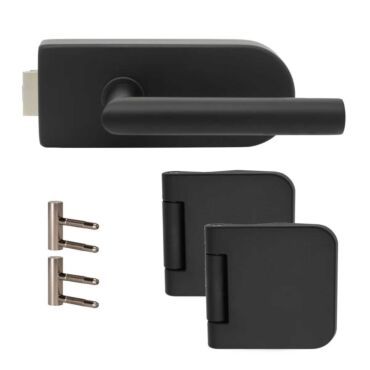

Interior Glass Doors with Black Matt Single Hinge
Interior Glass Doors with Black Matt Single Hinge
Heavy glass door lock case constructed from stainless steel with a black matte, finely ground surface featuring a whisper latch for significantly reduced closing noise. The double clamping follower securely fixes the door handle pair's square pin using tight springs, creating a non-slip connection between the lock follower and the square. This minimizes the wobbling of the handle pair.
With the included 16/18 mm handle pair adapters, any stainless steel handle pairs can be used with this glass door lock..
- Glass door hinge set made of solid block aluminium in black matte stainless steel finish fine grinded.
- Frame parts (also called hinge middle parts) for wooden frames
- Pair of door handles according to product description / product illustration
The glass door fitting set fits every standard glass door with Variant perforation, i.e. for the lock case 2 glass perforations horizontally next to each other and for the glass door hinges 2 glass perforations vertically below each other. Best workmanship and long durability guarantee you a long time pleasure with this product.
Included:
1 handle set
2 door hinges
Features
High-quality materials
No aluminium sheet metal, no anodized surfaces that pick up
Nickel-plated closing wedge
High-quality lock mechanism
Position springs for exact and backlash-free grip position
Exact and inconspicuous welding seams
Housing and handle are made of solid stainless steel
Modern designs
Glass Door Hinges:
Our hinge rubber pads are manufactured in a special process in Germany. This prevents the glass door from slipping even after quite a few years when properly installed.
Product Details:
- Design: WC integrated knob cylinder (emergency opening slot on the back).
- 2-piece hinges (horizontal studio bore)
- Tested according to class 3 for 200,000 handle operations
- Surface / Color: Black Matt
- Fitting type: Complete set for glass doors
- DIN direction: can be used on both sides
- For Door Thickness: 8 mm (5/16)
- 10 mm (3/8″)
- Glass door width (max): (38" Inches)
- Glass door weight (max): 55 kg (121 Pounds)
Write Your Own Review
| Surface / Color: | Black Matt |
| Fitting type: | Complete set for glass doors |
| DIN direction: | Can be used on both sides |
| For Door Thickness: | 8 mm (5/16) - 10 mm (3/8″) |
| Glass door width (max): | (38" Inches) |
| Glass door weight (max): | 55 kg (121 Pounds) |
| Locks: | Pivot & Swing Glass Doors |
| Types Of Hinges: | Matt Stainless Steel |
