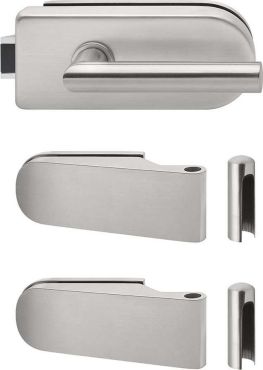

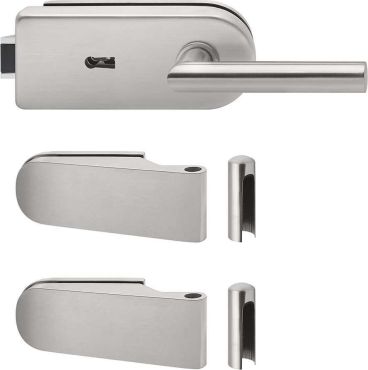

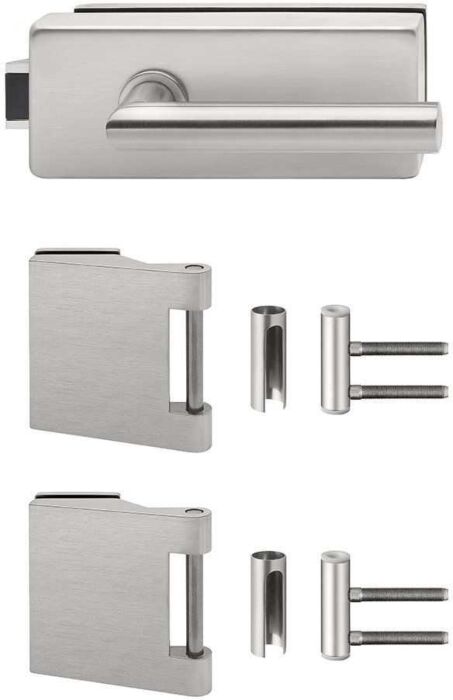

Interior Glass Door Installation Kit

Glass door hardware with locks and hinges are now available. This stainless steel lock box features a surface and whisper latch to secure the lock.
With a clamping follower and tension springs, the handle pair square is securely fastened for a connection that minimizes wobble. Handle pair adapters are included to accommodate all stainless steel handles with this lock.

Aluminum block hinges for glass doors with stainless steel finish.
Frame pieces (hinge spacers) designed for frames.
One set of handles as shown in the product description/illustration.

This hardware set is compatible with Variant perforated glass doors, which includes two perforations for the lock box and two vertical perforations, for the hinges. The high quality finish and durability of this product guarantees your satisfaction.

Includes:

1 handle set

2 door hinges according to selection (see above)

Model with 2 hinges

Features

High-quality materials

No aluminum plate, no anodized surfaces to catch on

Nickel-plated locking wedge

High-quality locking mechanism

Positioning springs for exact, backlash-free gripping position

Precise and unobtrusive weld seams

Solid stainless steel housing and handle

Modern design

Surface / Color: stainless steel look

Surface / Color (depending on manufacturer) Stainless steel appearance

Hardware type: Complete set for glass doors

DIN direction: can be used on both sides

Handle fixing: 16 mm and 18 mm

Handle bearing: loose bearing

Latch (material): Silent latch (Kst coating for silent closing) for door thickness: 8 mm (5/16) - 10 mm (3/8″)

Frame type: Wooden frames

For frame / frame part height:48.5 mm (48.5 mm)

Glass door hinge drilling: Office (2 holes one below the other)

Drilling of glass door lock: Studio (2 drillings side by side)

Glass Door Width (max.) (38" Inches)

Maximum glass door weight 55 kg (121 lbs.)

Fixing on square pin: grub screw

Square pin (size): 8 mm

Screw connection (visibility): concealed

Screw connection (technical): continuous
