Installation Kit for Interior Glass Doors
The stainless steel lock, on the glass door has a finish. Features a quiet latch to minimize noise when closing. The clamping mechanism securely holds the square pin of the door handle set with springs creating a strong link between the lock and the pin.This design reduces any wobbling of the handles. Additionally this glass door lock comes with adapters for 16/18 mm handle sets allowing for compatibility, with stainless steel handle pairs.
The glass door fitting set fits every standard glass door with Variant perforation, i.e. for the lock case 2 glass perforations horizontally next to each other and for the glass door hinges 2 glass perforations vertically below each other. Best workmanship and long durability guarantee you a long time pleasure with this product.
- Glass door hinge set made of solid block aluminium in stainless steel finish fine grinded.
- Frame parts (also called hinge middle parts) for wooden frames
- pair of door handles according to product description / product illustration
The glass door fitting set fits every standard glass door with Variant perforation, i.e. for the lock case 2 glass perforations horizontally next to each other and for the glass door hinges 2 glass perforations vertically below each other. Best workmanship and long durability guarantee you a long time pleasure with this product.

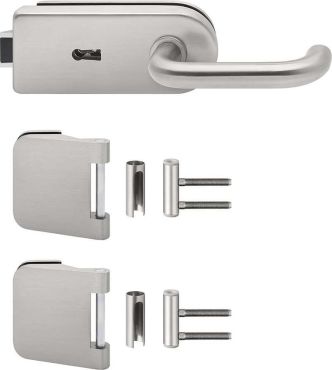

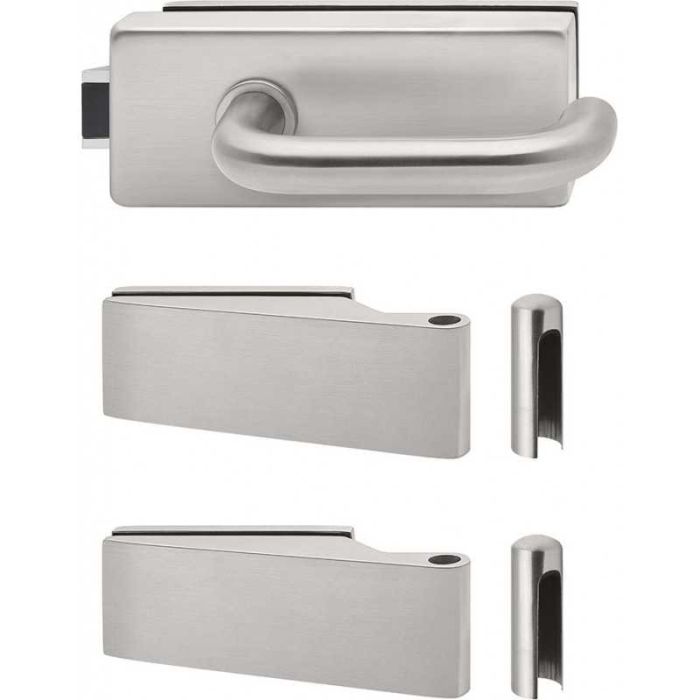

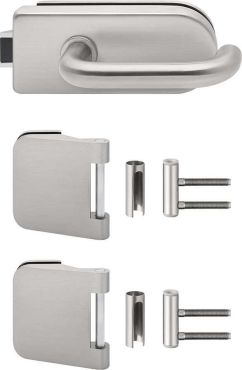

Included:
1 handle set
2 door hinges depending on selection (see above)
2 hinge model
2 door hinges depending on selection (see above)
2 hinge model
Features
High-quality materials
No aluminium sheet metal, no anodized surfaces that pick up
Nickel-plated closing wedge
High-quality lock mechanism
Position springs for exact and backlash-free grip position
Exact and inconspicuous welding seams
Housing and handle are made of solid stainless steel
Modern designs
Surface / Color: Stainless Steel Look
Surface / Color (according to manufacturer): Stainless steel look
Fitting type: Complete set for glass doors
DIN direction: can be used on both sides
Handle mounting: 16 mm and 18 mm
Handle bearing: loose bearing
Latch (material):Whisper latch (Kst coating for quiet closing)
for door thickness: 8 mm (5/16) - 10 mm (3/8″)
Frame type: Wooden frames
For frame / frame part height:48,5 mm
Glass door hinge perforation:Office (2 perforations underneath each other)
Glass door Lock case perforation:Studio (2 perforations next to each other)
Glass door width (max): (38" Inches)
Glass door weight (max): 55 kg (121 Pounds)
Fixation on square pin:grub screw
Square pin (size): 8 mm
Screw connection (visibility): concealed
Screw connection (technical): continuous
No aluminium sheet metal, no anodized surfaces that pick up
Nickel-plated closing wedge
High-quality lock mechanism
Position springs for exact and backlash-free grip position
Exact and inconspicuous welding seams
Housing and handle are made of solid stainless steel
Modern designs
Surface / Color: Stainless Steel Look
Surface / Color (according to manufacturer): Stainless steel look
Fitting type: Complete set for glass doors
DIN direction: can be used on both sides
Handle mounting: 16 mm and 18 mm
Handle bearing: loose bearing
Latch (material):Whisper latch (Kst coating for quiet closing)
for door thickness: 8 mm (5/16) - 10 mm (3/8″)
Frame type: Wooden frames
For frame / frame part height:48,5 mm
Glass door hinge perforation:Office (2 perforations underneath each other)
Glass door Lock case perforation:Studio (2 perforations next to each other)
Glass door width (max): (38" Inches)
Glass door weight (max): 55 kg (121 Pounds)
Fixation on square pin:grub screw
Square pin (size): 8 mm
Screw connection (visibility): concealed
Screw connection (technical): continuous
Write Your Own Review
| Model: | 0036 |
| Type: | Studio (2-piece tapes) |
| Accessory Color | Stainless Steel |
| Locks: | Pivot & Swing Glass Doors |
| Types Of Hinges: | Black Matt Stainless Steel |
