Hardware for The Installation of Glass Doors
Hardware for The Installation of Glass Doors

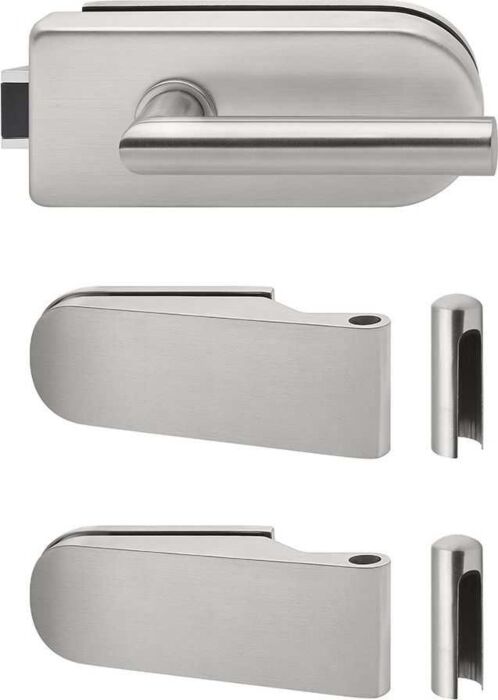

Heavy glass door lock case made of stainless steel in a finely ground surface with whisper latch for significantly reduced closing noise. The double clamping follower permanently fixes the square pin of the door handle pair by means of tight springs, thus creating a non-positive connection between lock follower and square. Wobbling of the pair of handles is minimized. Due to the enclosed handle pair adapters 16/18 mm you can combine all stainless steel handle pairs with this glass door lock:
- Glass door hinge set made of solid block aluminium in stainless steel finish fine grinded.
- Frame parts (also called hinge middle parts) for wooden frames
- Pair of door handles according to product description / product illustration
The glass door fitting set fits every standard glass door with Variant perforation, i.e. for the lock case 2 glass perforations horizontally next to each other and for the glass door hinges 2 glass perforations vertically below each other. Best workmanship and long durability guarantee you a long time pleasure with this product.
Included:
1 handle set 2 door hinges depending on selection (see above)
2 hinge model Features high-quality materials
No aluminium sheet metal, no anodized surfaces that pick up
Nickel-plated closing wedge High-quality lock mechanism
Position springs for exact and backlash-free grip position
Exact and inconspicuous welding seams
Housing and handle are made of solid stainless steel Modern designs
Surface / Color: Stainless Steel Look
Surface / Color (according to manufacturer): Stainless steel look
Fitting type: Complete set for glass doors
DIN direction: can be used on both sides
Handle mounting: 16 mm and 18 mm
Handle bearing: loose bearing
Latch (material): Whisper latch (Kst coating for quiet closing) for door thickness: 8 mm (5/16) - 10 mm (3/8″)
Frame type: Wooden frames
For frame / frame part height: 48,5 mm
Glass door hinge perforation: Office (2 perforations underneath each other)
Glass door Lock case perforation: Studio (2 perforations next to each other)
Glass door width (max): (38" Inches)
Glass door weight (max): 55 kg (121 Pounds)
Fixation on square pin: grub screw
Square pin (size): 8 mm
Screw connection (visibility): concealed
Screw connection (technical): continuous
Write Your Own Review
| Model: | 0031 |
| Type: | Studio (2-piece tapes) |
| Accessory Color | Stainless Steel |
| Locks: | Pivot & Swing Glass Doors |
| Types Of Hinges: | Matt Stainless Steel |
