Electromagnetic Lock for Glass Door
This electric lock operates on 12 volts DC. Can support a weight of, up to 600 lbs (280 kg). It is crafted from zinc alloy making it flame retardant and secure especially when used with security tempered glass doors. The lock is designed for single door applications. Can be easily mounted using a mortise. It is versatile. Can be used on glass doors, wooden doors, well as small sized doors. Constructed from aluminum the lock is resistant to magnetism, which contributes to its longevity.

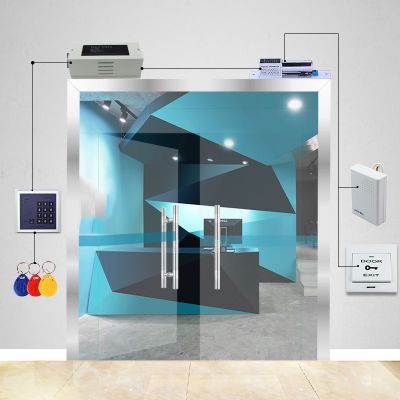

With a holding force of 280 kg this embedded electromagnetic lock is ideal for access control systems. It consists of an electromagnet and an armature plate that work together to secure the door.
When the electromagnet is attached to the door frame and the armature plate is placed on the door itself activating the current causes the armature plate to be attracted by the electromagnet thus securing the door shut. In case of a power outage the door will automatically unlock. This electromagnetic lock is suitable for use, on types of doors including glass, metal and fire resistant ones.
Features:
- Use magnetic power to lock the door, 280 kg (617.29 lbs) holding force.
- Made of high strength aluminium alloy material with hard anodized processing, heat dissipation and anti-corrosion with high reliability.
- Secure NC mode: unlocked when power off, locked when power on.
- Suitable for wooden door, glass door, metal door, fire-proof door.
- Anti magnetic design, wear resistant material manufacturing.
- High quality electromagnetic material vacuum treatment, double lock body insulation treatment.
- Comply with environmental protection requirements, low power consumption, super quiet design, no noise during operation.
- Various unlocking function options: keys, manual, remote control, intelligent induction, telecontrol, and so on, directly matching with building intercom.
- Unique integrated design, easy installation.
Property
Parameters | |
Lock Size: | 250Lx48.5Wx25H(mm) |
Armature plate: | 180Lx38Wx11H(mm) |
Holding Force: | 280kg(600Lbs) |
Voltage: | 12/24VDC+10% |
Current Draw: | 12V/500mA 24V/250mA |
Suitable for: | Home or office use, For Wooden door , Glass door ,Metal door , Fireproof door, Anti-theft gate |
Surface Temp: | ≤+20C |
Operating Temp: | 10~+55C(14-131F) |
Suitable Humidity: | 0~90%(non-comdensing) |
Finishes for Shell: | Anodized alninum |
Finishes for Magnetic: | Zinc |
Finishes for Armature: | Zinc |
Weight: | 2kg |
Standard Packing: | 1Pc/Box, 12Pcs/Carton |
